UTI 260B

Product Overview

The UNI-T UTi260B is a professional-grade, heavy-duty handheld thermal imaging camera engineered to deliver high-resolution diagnostic power without the premium price tag. Featuring a crisp 256 × 192 infrared sensor and a smooth 25Hz frame rate, this thermal imager provides real-time, ultra-clear temperature mapping.

Whether you are diagnosing overheating micro-components on a PCB, auditing electrical panels, or locating HVAC insulation leaks, the UTi260B gives you the precision tracking required to find hidden issues instantly. Built for demanding environments, it combines a rugged, drop-tested frame with advanced blending modes to make your troubleshooting fast, safe, and highly efficient.

Key Technical Specifications

• Infrared Resolution: 256 × 192 pixels (49,152 thermal data points)
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Thermal Sensitivity (NETD): ≤50mK for highly accurate thermal gradient detection
• Refresh Frame Rate: 25Hz for seamless, lag-free live panning
• Field of View (FOV): 56° × 42.2° wide-angle coverage
• Display Screen: 2.8-inch TFT LCD (320 × 240 resolution)

Why the UNI-T UTi260B Outperforms the Competition

🔍 4 Versatile Visual Display Modes

Equipped with dual lenses (thermal and visual), the UTi260B offers four image modes to suit any diagnostic task:

• Thermal: Pure infrared heat mapping.
• Visual Image: Standard digital camera view.
• Fusion (MIF): Overlays visual outlines onto thermal data for easier component identification.
• Picture-in-Picture (PiP): Isolates specific thermal target zones within a real-world photo.

🛡️ Built for Tough Environments

Engineered for the job site, this industrial-grade tool features an IP65 rating for superior water and dust resistance. It is rigorously tested to survive 2-meter (6.5 feet) drops, giving you peace of mind in harsh working conditions.

🔋 Long-Lasting Power & Expandable Storage

Powered by a massive 5000mAh rechargeable Lithium-ion battery, the UTi260B delivers up to 6 hours of continuous runtime. Save thousands of thermal images directly onto the included MicroSD card via the USB Type-C port.

💻 Real-Time PC Analysis & Streaming

Connect the camera to your computer via USB to unlock advanced analytics. Utilize the free UNI-T analysis software to stream live video, perform temperature metrics on specific nodes, and generate professional PDF diagnostic reports for clients.

Ideal Applications

• Electronics & PCB Diagnostics: Trace short circuits and overheating micro-chips (perfect when paired with a macro lens).
• Electrical Engineering: Safely identify loose terminals, overloaded breakers, and unbalanced phases.
• HVAC & Building Inspections: Spot missing insulation, underfloor heating leaks, and blocked ventilation ducts.
• Mechanical Maintenance: Monitor heat friction buildup in motors, bearings, and conveyor belts.

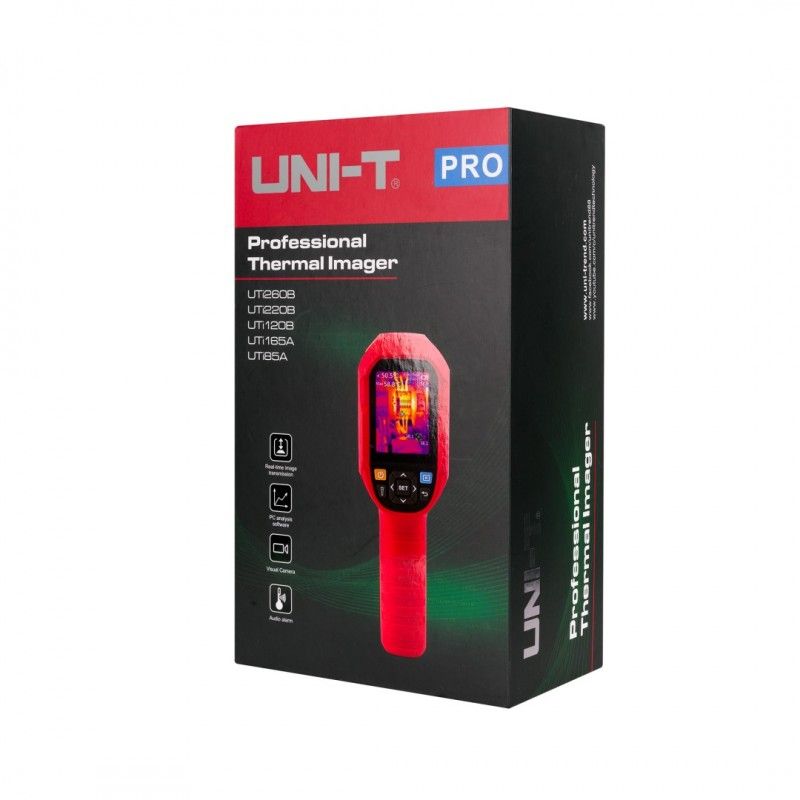

What's Included in the Box?

• 1 × UNI-T UTi260B Thermal Imager
• 1 × USB Type-C Cable
• 1 × MicroSD Memory Card
• 1 × Protective Carrying Wrist Strap
• 1 × User Manual & Software Download Link
